Harga Isuzu ELF NLR NMR Cikarang Bekasi
SPESIFIKASI ISUZU ELF NMR TERBARU EURO 4
HARGA DAN SPESIFIKASI ISUZU ELF NMR TERBARU
Harga dan spesifikasi Isuzu elf nmr terbaru dapatkan Harga terbaik dan Karoseri berkualitas dengan harga terjangkau hanya di ISUZU CIKARANG BEKASI, kami Dealer dan agen ISUZU terpercaya memberikan Harga terbaik dan termurah serta Paket Kredit termurah dengan proses mudah dan cepat, hanya untujk anda Customer terbaik ISUZU.
Type dan Spesifikasi ISUZU yang kami tawarkan kepada anda adalah yang terbaru dan terupdate juga Karoseri terpercaya, dengan proses SRUT tercepat dan terlengkap untuk semua type ISUZU dan khusus nya Isuzu Elf NMR dan NLR, dengan aplikasi beragam eperti : BOX BESI, BOX ALUMUNIUM, WING BOX, BOX FREEZER, BAK BESI 3 WAY, BAK KAYU, FLAT BED, TANGKI AIR DAN TANGKI MINYAK, DUMP TRUK, dan lain sebagainya sesuai kebutuhan anda.
APLIKASI PEMAKAI ISUZU ELF NLR dan NMR

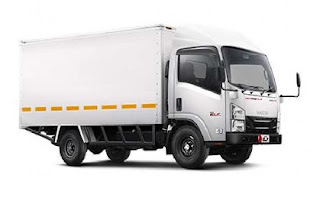

1ISUZU ELF NLR ( 4BAN 120 PS )BAK BESI 3 WAY, BOX BESI, BOX ALUMUNIUM, FLAT BED
2ISUZU ELF NLR L ( 4BAN 120 PS )BAK BESI 3 WAY, BOS BESI, BOX ALUMUNIUM, WING BOX, FLAT BED, BOX FREEZER, DLL
3ISUZU ELF NMR ( 6BAN 150 PS )BAK BESI 3 WAY, BAK KAYU RANGKA BESI, FLAT BED, DLL

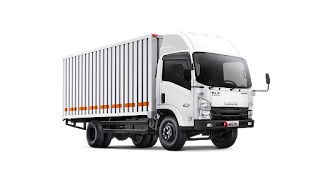

4ISUZU ELF NMR L ( 6BAN 150 PS )BAK BESI 3 WAY, BOX BESI, BOX ALUMUNIUM, FLAT BED, BOX FREEZER, WING BOX, DLL
5ISUZU ELF NMR HD 5.8 ( 6BAN 150 PS )BAK BESI 3 WQY, BAK KAYU RANGKA BESI, FLAT BED, CRANE 3 TON, DLL

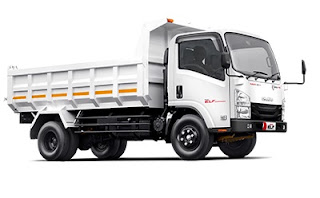

6ISUZU ELF NMR HD 6.5 ( 6BAN 150 PS )DUMP TRUK, TRUK MIXER 3 KUBIK, BAK BESI 3 WAY, DLL

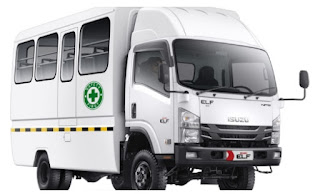

7ISUZU ELF NPS 81 4X4 ( 6BAN 150 PSMANHAUL, BAK BESI 3 WAY, CRANE TRUK, DLL
2ISUZU ELF NLR L ( 4BAN 120 PS )BAK BESI 3 WAY, BOS BESI, BOX ALUMUNIUM, WING BOX, FLAT BED, BOX FREEZER, DLL
3ISUZU ELF NMR ( 6BAN 150 PS )BAK BESI 3 WAY, BAK KAYU RANGKA BESI, FLAT BED, DLL
4ISUZU ELF NMR L ( 6BAN 150 PS )BAK BESI 3 WAY, BOX BESI, BOX ALUMUNIUM, FLAT BED, BOX FREEZER, WING BOX, DLL
5ISUZU ELF NMR HD 5.8 ( 6BAN 150 PS )BAK BESI 3 WQY, BAK KAYU RANGKA BESI, FLAT BED, CRANE 3 TON, DLL
6ISUZU ELF NMR HD 6.5 ( 6BAN 150 PS )DUMP TRUK, TRUK MIXER 3 KUBIK, BAK BESI 3 WAY, DLL
7ISUZU ELF NPS 81 4X4 ( 6BAN 150 PSMANHAUL, BAK BESI 3 WAY, CRANE TRUK, DLL
SPESIFIKASI dan DIMENSI TRUK ISUZU ELF NMR L EURO 4 terbaru
DIMENSI / DIMENSION
| Panjang / Overall Length [OAL] | mm | 7,015 |
| Lebar / Overall Width [OW] | mm | 1,920 |
| Tinggi / Overall Height [OH] | mm | 2,345 |
| Jarak Sumbu / Wheelbase [WB] | mm | 4,175 |
| Julur Depan / Front Overhang [FOH] | mm | 1,110 |
| Julur Belakang / Rear Overhang [ROH] | mm | 1,730 |
| Jarak Terendah ke Tanah / Minimum Clearance [HH] | mm | 220 |
| Jejak Depan / Front Tread [AW] | mm | 1,475 |
| Jejak Belakang / Rear Tread [CW | mm | 1,425 |
| Cabin to End [CE] | mm | 5,400 |
MESIN / ENGINE
| Model | 4HL1-TCS | |
| Tipe / Type | Direct Injection, Commonrail, SOHC, 4 Cylinder, VGS Turbo Intercooler | |
| Sistem Kontrol Emisi | EURO4 with EGR & DOC | |
| Diameter x Langkah / Bore x Stroke | mm | 115 X 115 |
| Isi Silinder / PistonDisplacement | CC | 4,778 |
| Tenaga Maksimum / Maximum Power | PS/ rpm | 150 / 2,600 |
| Torsi Maksimum /Maximum Torque | PS/ rpm | 41 / 1,400 – 2,600 |
TRANSMISI / TRANSMISSION
| Mode | MYY6S | |
| PerbandinganGigi / Gear Ratio | 1ST | 5.979 |
| 2ND | 3.434 | |
| 3RD | 1,862 | |
| 4TH | 1.297 | |
| 5th | 1.000 | |
| 6th | 0.759 | |
| REV | 5.701 | |
| PerbandinganGigi Terakhir / Final Gear Ratio | 5,375 |
BERAT / WEIGHT
| Berat Kosong Kendaraan / Curb Weight | KG | 2,590 |
| BeratTotal Kendaraan /Gross VehicleWeight [GVW] | KG | 8,250 |
| Kapasitas Gardan Depan / Capacity Front Axle | KG | 2,450 |
| Kapasitas Gardan Belakang / Capacity Rear Axle | KG | 5,800 |
REM / BRAKE
| Tipe/Type | Hydraulic |
| Rem Kaki / Service Brake | Hydraulic, saluran ganda dengan vacum booster |
| Rem Tangan / Hand Brake | Expanding pada transmisi belakang |
| Sistem Pengereman Gas Buang / Exhaust Brake | Exhaust brake, tuas berada di stir |
RODA / TYRE
| Ukuran Ban | 7.50-16-14PR |
| Ukuran Velg | 16 X 6.00 |
SUSPENSI / SUSPENSION
| Depan / Front | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
| Belakang / Rear | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
LAIN-LAIN / OTHERS
| Kapasitas Tangki / Fuel Tank Capacity | LTR | 100 |
| Radius Putar Minimum / Minimum Turning Radius | METER | 8,5 |
| Daya Tanjak Maksimum / Maximum Gradeability | % | 39 |
| Kecepatan Maksimum / Maximum Speed | KM/H | 106 |
| Aki / Accu | V-AH | 2 X 12 V – 65 Ah |
| Alternator | V-A | 24 – 60 |
| Kamera Mundur / Reverse Parking Camera | ADA | |
| Audio Head Unit | ADA | |
| USB Charging System | ADA | |
| APAR (Alat Pemadam Api Ringan) | ADA | |
| Fan Blower | ADA | |
| Garansi / Warranty | 3 Tahun / 100,000 km |
Baca juga: Harga Isuzu ELF untuk informasi lebih lengkap.
